Product Description

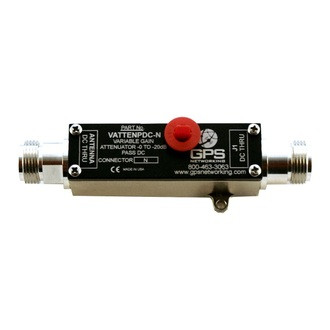

The VATTENDCB GPS RF Active Variable Attenuator is a one input, one output device with variable attenuation range from 1dB to 25dB, user selected pot range control. The device is available in a miniaturized housing. The frequency response covers the GPS L1/L2 and GLONASS bands with excellent flatness. In the DC Blocked configuration, the RF output (J1) will pass DC from the connected GPS receiver to power the active variable attenuator and then block the DC at the input of the attenuator going to the antenna.
Electrical Specifications, TA = 25°C
| Parameter | Conditions |
| Min | Typ | Max | Units |
| Freq. Range | Ant – J1 |
| 1.1 |
| 1.7 | GHz |
| In/Out Imped. | Ant, J1 |
|
| 50 |
| Ω |
| Attenuation | Ant – J1, User Selected Attenuation value (X) between 0 - 20dB |
| X-1 | X | X+1 | dB |
| Input SWR | J1 - 50Ω |
|
|
| 1.8:1 | - |
| Output SWR | Ant - 50Ω |
|
|
| 1.8:1 | - |
| Flatness | | L1 – L2 | ; Ant – J1 |
|
| 0.5 | 1 | dB |
| Reverse Isolation | J1 – Ant |
| 35 |
|
| dB |
| Group delay | τd,max- τd,min:Ant – J1 |
|
|
| 1 | ns |
| Flatness |
|
|
|
|
|
|
| Required DC Input | DC Input on J1 |
| 3.6 |
| 15 | Vdc |
| Current | Amplifier Current Draw, All ports - 50Ω |
|
|
| 15 | mA |
Available Options
| Pass/Block DC Options |
|
| Pass DC - PDC | Pass DC J1 to Ant. |
| DC Blocked - DCB | DC Blocked |
| RF Connector Options |
|
| Connector Options | CONNECTOR STYLE |
|
| Type N-female |
|
| Type SMA-female |
|
| Type TNC-female |
|
| Type BNC-female |
Downloads
| File | Type | Description |
| VATTENPDC-specsheet-2015_REV_B.pdf | Spec Sheet | VATTENDCB variable attenuator spec sheet |
