  • L1FPDC

L1FPDC

US$210.00
SKU:
L1FPDC-N
Availability:
1 week lead time
Quantity:

Product Description

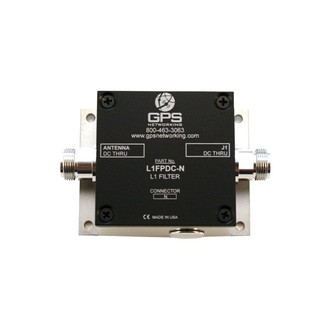

The L1FPDC is a one input, one output RF device that provides additional GPS L1 filtering from a GPS antenna. The frequency response covers L1 centered at 1575MHz. In the normal configuration, the RF output (J1) passes DC from the connected GPS receiver through the input port to the antenna, allowing the GPS receiver to power the antenna.

Electrical Specifications, TA = 25°C

Parameter

Conditions

Min

Typ

Max

Units

Pass Band: L1

Ant – J1

1.570

1.575

1.580

GHz

In/Out Imped.

Ant, J1



50



Ω

Insertion Loss

Ant – J150Ω , L1

-2.8

-3.0

-3.2

dB

Input SWR

J1 - 50Ω, L1





2.0:1

-

Output SWR

Ant - 50Ω





1.6:1

-

Gain

J1

-2.0

-2.5

-3.0

dB

Passband Ripple

Ant – J1, L1& L2 Passbands



1

2

dB

Stopband Rej: L1

1575 +/- 30MHz, Relative to the passband



30



dB

Downloads

File Type Description
L1FPDC-specsheet.pdf Spec Sheet L1FPDC GPS L1 filter spec sheet
