Product Description

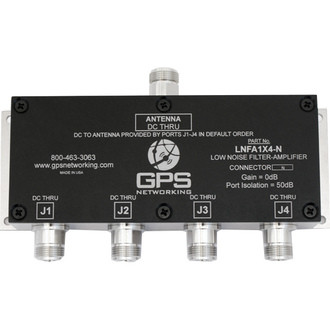

The LNFA1X4 Low Noise Filtered Amplified GPS Splitter is a one input, four output device with 0dB nominal gain. The device features a low noise input section to establish an overall system noise figure. Excellent port-to-port isolation and unity gain are achieved by padded outputs. The device features excellent frequency selectivity around the L1 band to prevent interference from other high power radio frequency sources, such as cellular transmitter stations.
The LNFA1X4 device will power itself and an external GPS antenna from a 5.0 VDC source connected on any of the RF Outputs. A “hunt-and-pick” circuit is used to select only one DC input for power in the event that more than one source is connected. Remaining DC inputs are switched to a 200Ω resistor to simulate antenna current draw.
Electrical Specifications, TA = 25°C
| Parameter | Conditions |
| Min | Typ | Max | Units | ||
| Freq. Range |
| Ant–J1, J2 -J4 50Ω; Ant-J2, J1, J3-J4 50Ω; Ant-J4, J1-J4 50Ω | 1.1 |
| 1.7 | GHz | ||
| In/Out Imped. | Ant, J1, J2, J3, J4 |
|
| 50 |
| Ω | ||
| Gain |
|
|
| -1.5 | 0.0 | 1.5 | dB | |
|
|
|
|
|
|
|
|
|
|
| Input SWR |
| All ports - 50Ω |
|
|
| 2.0:1 |
| |
| Output SWR |
| All ports - 50Ω |
|
|
| 1.5:1 |
| |
|
|
|
|
|
|
|
|
|
|
| Noise Figure |
| Ant – J1, J2, J3, J4 - 50Ω; |
|
| 3.6 | 3.8 | dB | |
| Selectivity |
| ±50MHz, Ant – Any Output | 40 | 45 |
| dB | ||
| Amplitude Balance |
| J1-J2, J1-J3, J1-J4, J2-J3, J2-J4, J3-J4; Ant – J1-J4, 50Ω |
|
|
| 1.0 | dB | |
| Phase Balance |
| Phase (J1 – J2, J3, J4) ; Ant – J1, J2, J3, J4 - 50Ω ; |
|
|
| 1.0 | deg | |
| Output Isolation |
| J1 – J4, Ant - 50Ω | 36 | 40 | 50 | dB | ||
| Group delay |
| τd,max - τd,min :Ant – J1, J2, J3, J4- 50Ω; |
|
|
| 1 | ns | |
| Flatness |
|
|
|
|
|
|
|
|
| Req. DC Input V. |
| DC Input on J1, J2, J3 or J4 | 4.5 | 5.0 | 5.5 | Vdc | ||
| Pı dB |
| Output Power @ 1dB Gain Compression (f = 1.5GHz) |
|
| -32 |
| dBm | |
| Current Draw (5v) (1) |
| Amplifier Current Draw, All ports - 50Ω |
|
| 12 | 15 | mA | |
Downloads
| File | Type | Description |
| LNFA1X4-specsheet-2015.pdf | Spec Sheet | ALDCBC1X4 GPS Splitter Spec Sheet |
