  • L1/L2GHNRRKIT combo repeater

L1/L2/L5, GPS/Glonass/Galileo/Omnistar Combo Repeater

US$1,799.00
SKU:
L1/L2GHNRRKIT-N/5/110
Availability:
Approximately 1 week lead time. For large quantity quotes contact sales@tri-m.com
Quantity:

Product Description

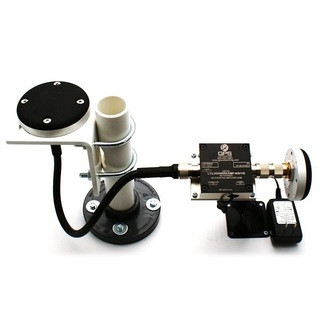

The GPS L1/L2/L5 Galileo/GLONASS/Omnistar Hanger Networked Re-Radiating Kit (L1/L2GHNRRKIT) is a complete re-radiating system that allows re-radiation of the GPS L1, L2, L5, Galileo, GLONASS and Omnistar signals indoors. The L1/L2GHNRRKIT consists of an active roof antenna, a re-radiating amplifier with a wall mount plug-in transformer that powers the entire system, and a passive re-radiating antenna. The signal from the roof antenna is amplified and radiated indoors. Thus, if a receiver has line of sight with the re-radiating antenna, it can receive all of the GNSS signals indoors up to 100 feet away.

*Please note that the L1/L2GHNRRKIT does not include antenna mounts or cable.  For mounts see WRUMT, L1RAMB, & L1L2RAMB

Features

  • Amplified L1/L2 GNSS Roof Antenna
    Gain ≥ 33dB
  • New L1/L2/L5 Galileo Glonass Omnistar Capability
  • Re-Radiating Amplifier with Power Supply
    Typical Gain 30dB
  • Optional Mounting Kit Hardware
    Roof Antenna Mount & Adjustable Re-Radiating Mount
  • Variable Gain Option Available
    Re-Radiating Amp Gain Varies from 0 to +23 dB
  • Variable Gain Option with LCD Display
    Push Button Control in 1dB Increments 0-30dB gain



Specifications

Please refer to the data sheet L1L2GHNRRKIT-specsheet-2015.pdf

Other Details

Cable:
Ordered Separately
Optional Accessories:
L1RAMB & L1L2RAMB
