Description

The L1/L2/L5 GNSS Indoor Testing Solution (L125G-ITS) comes with everything required to build a re-radiating system that can broadcast all major GNSS frequencies indoors, including Galileo, GLONASS and Omnistar.
GNSS signals received by the roof antenna are amplified and re-radiated to indoor GNSS receivers, eliminating the need to attach receivers directly to the roof antenna.

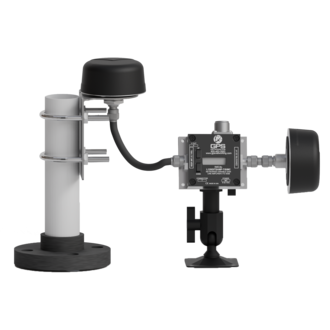

The L125G-ITS consists of an active roof antenna, a passive re-radiating antenna, and a re-radiating amplifier with an external power supply that powers the entire system.

50 ft of LMR400-UF coaxial cable is provided to connect the roof antenna to the re-radiating kit. The L125G-ITS will transmit GNSS signals indoors to receivers up to 100 feet away, with all necessary mounts and adapters included in the kit.

Features

• High Gain Amplified Roof Antenna
  • Provides 35 dB gain via internal LNA.
• Kit Mounting Hardware
  • Roof Antenna Mounts & Re-Radiating Amplifier Mount included.
• Re-Radiating Variable Gain Amplifier
• Adjustable gain dial from 0 dB to 30 dB.
• *this kit does not include LCD display for variable gain.*

Use Cases

• Re-radiate signal indoors for GNSS product testing.
• Maintain GNSS signal lock for military vehicles parked indoors.
• Facilitate faster GNSS signal acquisition for military aircraft inside a hardened hangar.
• Combine with one of our splitter devices to create a GPS distribution network.
