NRMALDCBS1X8-S/5/110

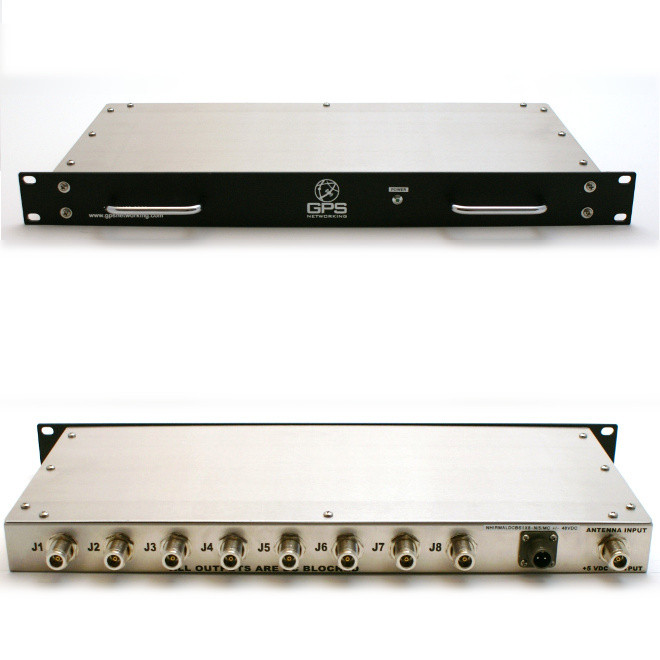

This Rack Mounted Amplified Loaded DC Blocked Splitter 1X8 (RMALDCBS1X8) is an active one input, 8 output RF splitter that splits signals from 1.1 GHz to 1.7 GHz with a form factor designed to be installed in a server rack.

This equipment is designed to amplify and split signals within the L-band to provide multiple devices with the signal from a single antenna.

Features

• Excellent Amplitude Balance

• Less than 1 dB variation between ports.

• Flat Group Delay
• Less that 1ns variation between L1 and L2.

• High Output Gain

• 14 dB gain is typical across all operating frequencies in the standard configuration.

Use Cases

• Splitting and amplifying a roof antenna signal between 8 GPS/GLONASS/GNSS receivers.

• Splitting and amplifying an antenna signal to 8 passive antennas to re-radiate multiple rooms.
