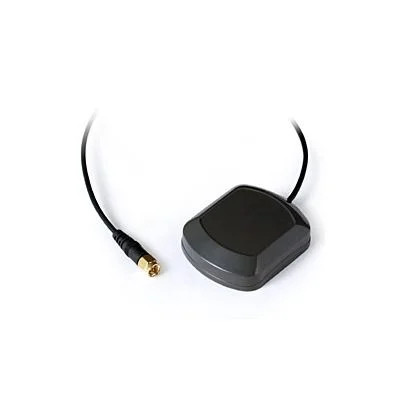

- SM-76 GPS Antenna with Low Noise Amplifier, SMA Connector
Product Description
The SM-76 is the integration of the high performance GPS patch antenna and a state-of-the-art low noise amplifier into a very low profile/extremely compact enclosure.
Specification:
| Physical Constructions: | ||
| Constructions: | Polycarbonate radome over a die-cast base along with detachable cable/connector for easy mount | |
| Dimensions: | 58 mm(L)x 48 mm(W)x 15 mm(H). | |
| Weight: | 63 grams (excluding cable & connector) | |
| Standard Mounting: | 2 magnet mount, screw mount with 2 M3 tapped holes on the base. | |
| Optional mounting plate: | Metal flanges with holes for permanent mount. | |
| Cable & Connector: | ||
| RF cable: | 5 meter RG174/U (standard) cable & length (optional) | |
| Pulling strength: | 6 Kg @ 5 sec. | |
| Connector: | SMA | |
| Antenna Element: | ||
| Polarization: | R.H.C.P. (Right Handed Circular Polarization). | |
| Absolute Gain @ Zenith: | +5 dBi typically | |
| Gain @ 10° Elevation: | -1 dBi typically | |
| Axial Ratio: | 3 dB max. | |
| Low Noise Amplifier: | ||
| Gain: | 28 dB typically | |
| Band Width | 2 MHz min. | |
| Noise Figure: | 1.3 max. | |
| Supply Voltage: | 2.5~5.5V DC | |
| Current Consumption: | 12mA +/- 2mA @ 3.0 ~ 5.0V DC | |
| Overall Performance: (antenna element, LNA & coax cable) | ||
| Center Frequency: | 1575.42 MHz. | |
| Gain: | 26 dB min. | |
| Noise Figure: | 2.0 max. | |
| Axial Ratio: | 3 dB max. | |
| VSWR: | 2.0 max. | |
| Output Impedance: | 50ohm | |
| Enviromental Condition: | ||
| Operating Temperature: | -40°C~ +85°C. | |
| Storage Temperature: | -40°C~ +85°C | |
| Relative Humidity: | 95% non-condensing. | |
Other Details
Connector type:
SMA
