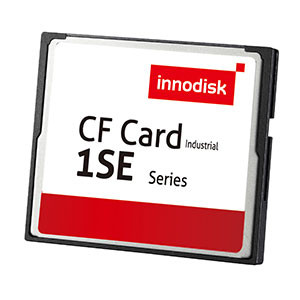

  • Innodisk iCF 1SE DC1M-512D41AC1SB CompactFlash Card
  • DC1M-512D41AC1SB mechanical drawing

DC1M-512D41AC1SB

US$22.00
SKU:
DC1M-512D41AC1SB
Availability:
This product is built to order and usually ships in approximately 2 weeks
Minimum Purchase:
10 unit(s)
Quantity:

Product Description

The Innodisk DC1M-512D41AC1SB CompactFlash® card provides high capacity solid-state flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.

Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash® 1SE Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial work place. The Industrial CompactFlash® features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash® 1SE (iCF 1SE) support advanced PIO (0-6), Multiword DMA (0-2), Ultra DMA (0-4) transfer mode, multi-sector transfers, and LBA addressing.



DC1M-512D41AC1SB Specifications:

Storage Specification

Model Info iCF 1SE
Flash Type SLC
Connector Standard 50 pin CompactFlash connector
Capacity 512MB
Channels 2
Performance Sequential R/W (MB/sec, max.): 40 / 30
H/W Write Protect Optional
ATA Security Yes
SMART Yes
Data Security Not supported



General

Electrical 0.75W (5V x 125mA)
Mechanical 42.8 x 36.4 x 3.3 mm
Temperature Operating: Standard Grade: 0C to +70C
Storage: -55 to +95°C
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Warranty 5 Years
RoHS Compliant
