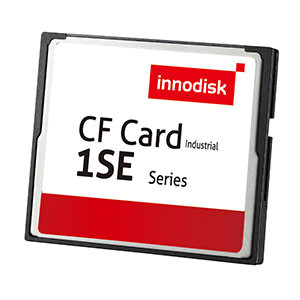

Innodisk iCF 1SE DC1M-02GD41AW1DB CompactFlash Card

Innodisk

DC1M-02GD41AW1DB

US$53.00

Product Description

The Innodisk DC1M-02GD41AW1DB CompactFlash® card provides high capacity solid-state flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.

Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash® 1SE Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial work place. The Industrial CompactFlash® features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash® 1SE (iCF 1SE) support advanced PIO (0-6), Multiword DMA (0-2), Ultra DMA (0-4) transfer mode, multi-sector transfers, and LBA addressing.

DC1M-02GD41AW1DB Specifications:

Storage Specification
Model Info	iCF 1SE
Flash Type	SLC
Connector	Standard 50 pin CompactFlash connector
Capacity	2GB
Channels	2
Performance	Sequential R/W (MB/sec, max.): 40 / 30
H/W Write Protect	Optional
ATA Security	Yes
SMART	Yes
Data Security	Not supported

General
Electrical	0.75W (5V x 125mA)
Mechanical	42.8 x 36.4 x 3.3 mm
Temperature	Operating: Industrial Grade: -40C to +85C Storage: -55 to +95°C
Vibration	20G@7~2000Hz
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years
RoHS	Compliant
