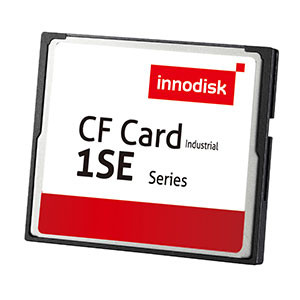

  • Innodisk iCF 1SE DC1M-04GD41AW1DB CompactFlash Card
  • Image 2

DC1M-04GD41AW1DB

US$66.00
SKU:
DC1M-04GD41AW1DB
Availability:
This product is built to order and usually ships in approximately 2 weeks
Minimum Purchase:
5 unit(s)
Quantity:

Product Description

The Innodisk DC1M-04GD41AW1DB CompactFlash® card provides high capacity solid-state flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.

Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash® 1SE Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial work place. The Industrial CompactFlash® features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash® 1SE (iCF 1SE) support advanced PIO (0-6), Multiword DMA (0-2), Ultra DMA (0-4) transfer mode, multi-sector transfers, and LBA addressing.



DC1M-04GD41AW1DB Specifications:

Storage Specification

Model Info iCF 1SE
Flash Type SLC
Connector Standard 50 pin CompactFlash connector
Capacity 4GB
Channels 2
Performance Sequential R/W (MB/sec, max.): 40 / 30
H/W Write Protect Optional
ATA Security Yes
SMART Yes
Data Security Not supported



General

Electrical 0.75W (5V x 125mA)
Mechanical 42.8 x 36.4 x 3.3 mm
Temperature Operating: Industrial Grade: -40C to +85C
Storage: -55 to +95°C
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Warranty 5 Years
RoHS Compliant
