Innodisk

DC1M-08GD71AC1QB

US$137.00

Product Description

The Innodisk DC1M-08GD71AC1QB provides 8GB solid-state flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.

Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash® 9000 Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial work place. The Industrial CompactFlash® features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash® 9000 (iCF 9000) support advanced PIO (0-6), Multiword DMA (0-4), Ultra DMA (0-7) transfer mode, multi-sector transfers, and LBA addressing.

DC1M-08GD71AC1QB Specifications:

Model Name	iCF 9000
Interface	PATA
Type	Standard
Flash Type	SLC
Connector	50pin CF connector
Capacity	8GB
Max. Channels	4
Sequential R/W (MB/sec, max.)	110/100
Max. Power Consumption	0.76W(3.3V x 230mA)
H/W Write Protect	Optional
ATA Security	Y
S.M.A.R.T.	Y

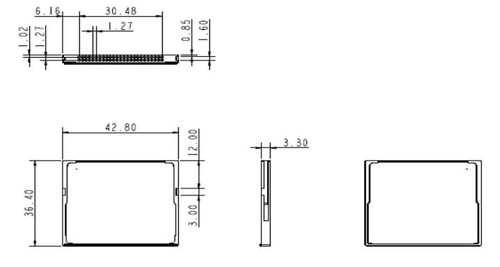

Dimension (WxLxH/mm)	42.8 x 36.4 x 3.3
Vibration	20G@7~2000Hz
Shock	1500G@0.5ms
MTBF	>3 million hours
Storage Temperature	-55°C ~ +95°C
Operation Temperature	Standard Grade: 0°C ~ +70°C;
