  • Innodisk DE0H-01GD31W1DB

DE0H-01GD31W1DB

US$41.00
SKU:
DE0H-01GD31W1DB
Availability:
This product is built to order and usually ships in approximately 2 weeks
Minimum Purchase:
5 unit(s)
Quantity:

Product Description

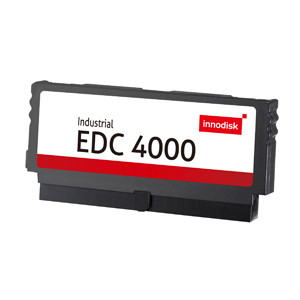

Innodisk’s vertical DE0H-01GD31W1DB fits into any platform with an IDE connector and provides a simple, fast path upgrade. Designed for industrial embedded applications that require a speedy booting process, the EDC 4000 upgrades the working environment efficiently and enhances data transfer rates with read and write performances of up to 40MB and 20MB per second respectively. The vertical EDC 4000 comes in capacities ranging from 128MB to 16GB and is available in 40-pin and 44-pin vertical connector packages.

DE0H-01GD31W1DB Specification

Interface

PATA

Type

Vertical
Flash Type SLC
Capacity 1GB
Max. Channels 2
Sequential R/W (MB/sec, max) 40/28
Max. Power Consumption 3.3V/5V
H/W Write Protect Yes
ATA Security Yes
S.M.A.R.T. Yes
Dimension (WxLxH) 40 pin: 60.2 x 27.3 x 6.4
Environment

Vibration: 20G @7~2000Hz
Shock: 1500G @ 0.5ms
Storage Temperature: -55°C ~ +95°C
Operating Temperature: -40°C ~ +85°C
MTBF: >3 million hours
