Innodisk

DE4H-02GD41AW1SB

US$50.00

Product Description

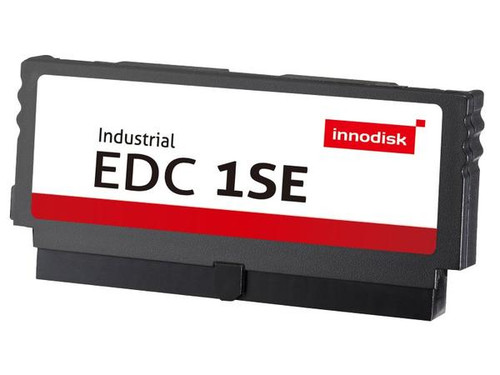

The Innodisk DE4H-02GD41AW1SB provides high capacity solid-state flash memory that electrically complies with the Personal Computer Memory Card International Association ATA standard. Innodisk Embedded DISK CARD 1SE (EDC 1SE) is embedded solid-state data storage systems for industrial work place. Embedded DISK CARD 1SE (EDC 1SE) features an extremely light weight, reliable, low-profile form factor.

Embedded DISK CARD 1SE (EDC 1SE) supports advanced PIO (0-4), Multi Word DMA (0-2), Ultra DMA (0-4) transfer modes, multi-sector transfers, and LBA addressing

DE4H-02GD41AW1SB Specification

Storage Specification
Model Info	EDC 1SE Vertical
Flash Type	SLC
Connector	44 pin (2mm pitch) female connector
Capacity	2GB
Channels	2
Performance	Sequential R/W (MB/sec, max.): 20 / 10
H/W Write Protect	Optional
ATA Security	Yes
SMART	Yes
Data Security	Not supported

General
Electrical	0.76W (3.3V x 230mA)
Mechanical	50.3 x 27.3 x 5.8 mm
Temperature	Operating: Industrial Grade: -40C to +85C Storage: -55 to +95°C
Vibration	20G@7~2000Hz
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years
RoHS	Compliant
