  • DA104 HDD Adapter PC/104 Boards

PC/104 Hard Drive Adapter

US$30.00
SKU:
DA104-HD
Availability:
For quantities exceeding current stock level, please call 604-814-5069, or E-mail sales@tri-m.com
Current Stock:
4
Quantity:

Product Description

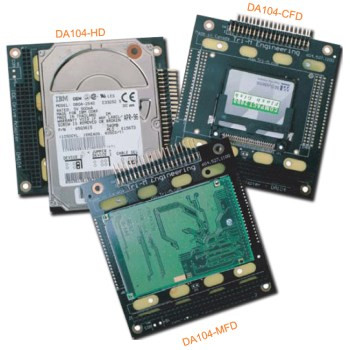

PC/104 - 2.5" IDE Adapter

The DA104-HD adapter provides a convenient means of integrating a 2.5" IDE hard drive, M-Systems CompactFlash, or M-Systems IDE2000 Flash Disk onto a PC/104 "stack". Connection of the drive to the host CPU IDE port is supported by a standard 40 pins ribbon cable. The 5VDC power for the drives is supplied either though the PC/104 bus, or 2 positions screw terminal. For additional memory, a second 2.5" hard drive or IDE2000 Flash Disk can be mounted to the underside of the module.

Advantages

  • Connect to CPU with standard IDE cable
  • 5V supplied via PC/104 or screw terminal
  • PC/104 compliant
  • ROHS compliant

Specifications

Weight 1.73oz/ 49.03g (excluding IDE drive
Dimensions 3.550" x 3.775" x 0.43"
Temperature

Operating: -40C to 85C
Storage: -55 to 85C

Humidity 95% non-condensing
ROHS status ROHS compliant


Downloads

 File Type Description
 da104_spec.pdf  Spec sheet Spec sheet for DA104
