*PLEASE NOTE: the L125GHNRRKIT kit does not include antenna mounts or cable.
For a complete kit including mounts & cable, see:

• L125G-ITS-VG (includes L125GHNRRKIT + 50ft LMR400-UF cable + antenna mounts + 0 to 26dB Variable Gain analog control dial)
• L125G-ITS-VGLCD (includes L125GHNRRKIT + 50ft LMR400-UF cable + antenna mounts + 0 to 30dB Variable Gain digital push button controls & LCD to display gain level)

For optional mounts see WRUMT, L1RAMB, & L125GRAMB
- - - - - - - - - - - - - - - - - - - - - - - - - - - -

The L1/L2/L5 GNSS Hangar Networked Re-Radiating Kit (L125GHNRRKIT) comes with the core components to build a re-radiating system that can re-radiate all the major GNSS frequencies indoors.

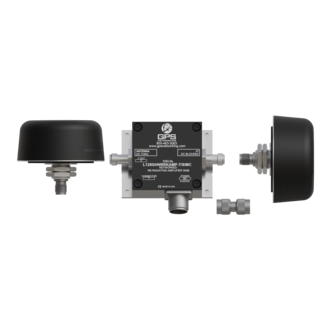

The GNSS signals received by the roof antenna are amplified and re-radiated to GPS receivers indoors, eliminating the need to attach receivers directly to the roof antenna. The L125GHNRRKIT consists of an active roof antenna, a passive re-radiating antenna, any required RF adapters, and a re-radiating amplifier (L1/L2GHNRRKAMP) with an external power supply that powers the entire system.
A cable from the roof antenna to the re-radiating kit is required and can be purchased separately.

L125GHNRRKIT will transmit GNSS signals indoors to receivers up to 100 feet away.
In the standard Networked (Externally Powered) configuration, the re-radiating amplifier output (J1) is DC Blocked. Custom gain, DC power, and connector configurations are available upon request.

Features

• High Gain Amplified Roof Antenna
  • Provides 35 dB gain via internal LNA.
• Re-Radiating Amplifier with External Power Supply
  • 30 dB gain typical.
• Optional Kit Mounting Hardware
  • Roof Antenna Mount & Re-Radiating Amplifier Mount available.
• Optional Re-Radiating Variable Gain Amplifier
  • Adjustable gain from 0 dB to 26 dB.
• Optional Re-Radiating Variable Gain LCD Amplifier
  • Adjustable gain from 0 dB to 30 dB.
