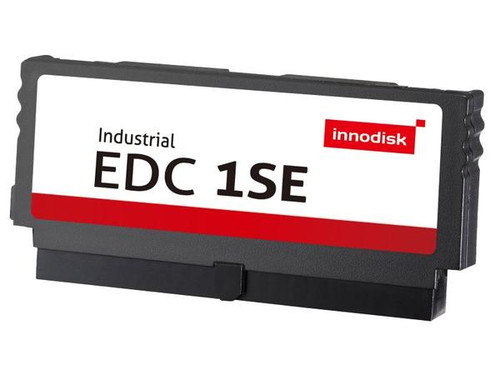

  • Innodisk EDC 1SE DE0H-02GD41AC1DB

DE0H-02GD41AC1DB

US$37.00
SKU:
DE0H-02GD41AC1DB
Availability:
This product is built to order and usually ships in approximately 2 weeks
Minimum Purchase:
5 unit(s)
Quantity:

Product Description

The Innodisk DE0H-02GD41AC1DB provides high capacity solid-state flash memory that electrically complies with the Personal Computer Memory Card International Association ATA standard. Innodisk Embedded DISK CARD 1SE (EDC 1SE) is embedded solid-state data storage systems for industrial work place. Embedded DISK CARD 1SE (EDC 1SE) features an extremely light weight, reliable, low-profile form factor.

Embedded DISK CARD 1SE (EDC 1SE) supports advanced PIO (0-4), Multi Word DMA (0-2), Ultra DMA (0-4) transfer modes, multi-sector transfers, and LBA addressing

DE0H-02GD41AC1DB Specification

Storage Specification

Model Info EDC 1SE Vertical
Flash Type SLC
Connector 40 pin (2.54mm pitch female connector
Capacity 2GB
Channels 2
Performance Sequential R/W (MB/sec, max.): 40 / 20
H/W Write Protect Optional
ATA Security Yes
SMART Yes
Data Security Not supported

General

Electrical 0.76W (3.3V x 230mA)
Mechanical 50.3 x 27.3 x 5.8 mm
Temperature Operating: Standard Grade: 0C to +70C
Storage: -55 to +95°C
Vibration 20G@7~2000Hz
Shock 1500G@0.5ms
MTBF >3 million hours
Warranty 5 Years
RoHS Compliant
